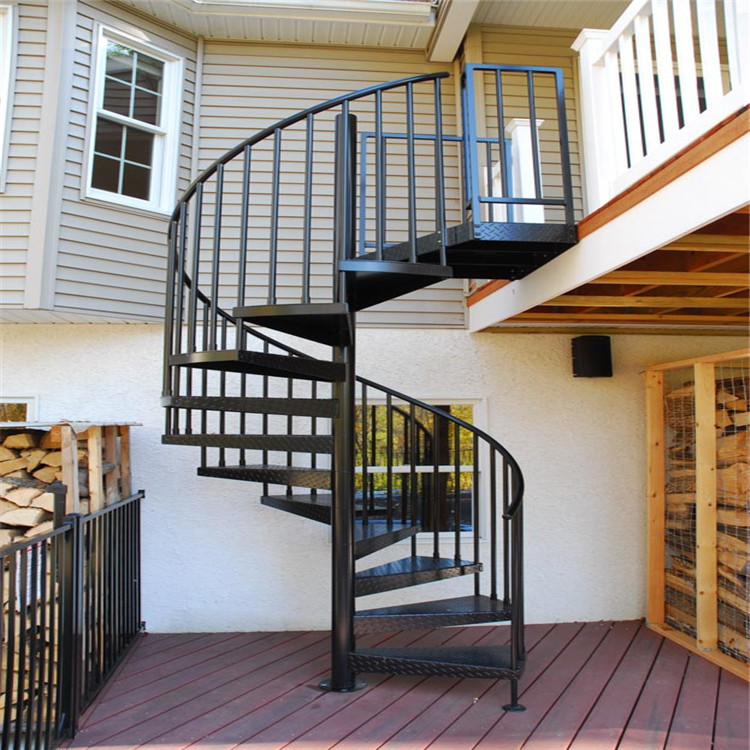

Modern Interior Carbon Steel Spiral Staircase Design

Spiral staircase is made to measure. Each model supplied is unique to the setting with the height, width and materials specified before production. The minumum diameter of this staircase need to be upto 1300mm. Could be suitable as the main stair in a house.

SPIRAL STAIRCASE SPEC:

Center Column	102*4mm
Column	114*4mm
Treads	4mm Diamond Plates Carbon Steel-Powder Coated
Spindles	Ø 25mm Carbon Steel-Powder Coated
Handrail	Ø 42mm Carbon Steel-Powder Coated
Tread Support	Ø 25mm Carbon Steel-Powder Coated
Balustrade Type	Vertical Spindles
Finish Of Steel	Carbon Steel-Powder Coated
Diameter	Min 1300mm
Additional	Landing Balustrade-Included

Entry and Exit points.

One of the most common questions we get asked is “where does the spiral start and finish”. The rotation of a spiral staircase is determined by:
The floor to floor height (which specifies the number of treads)
The diameter of the spiral (smaller diameters generally have a larger tread segments)
The shape and size of the top platform
Building regulations (they stipulate a minimum tread depth (going) and maximum height (riser) of each step.
